1000T/H Mobile Shiploader With Full Pre-Assembly for Handling

Contents hide

1 Revolutionizing Loading with Rigorously Tested Turnkey Solutions

2 Why We Do Full Pre-Assembly At Factory?

Revolutionizing Loading with Rigorously Tested Turnkey Solutions

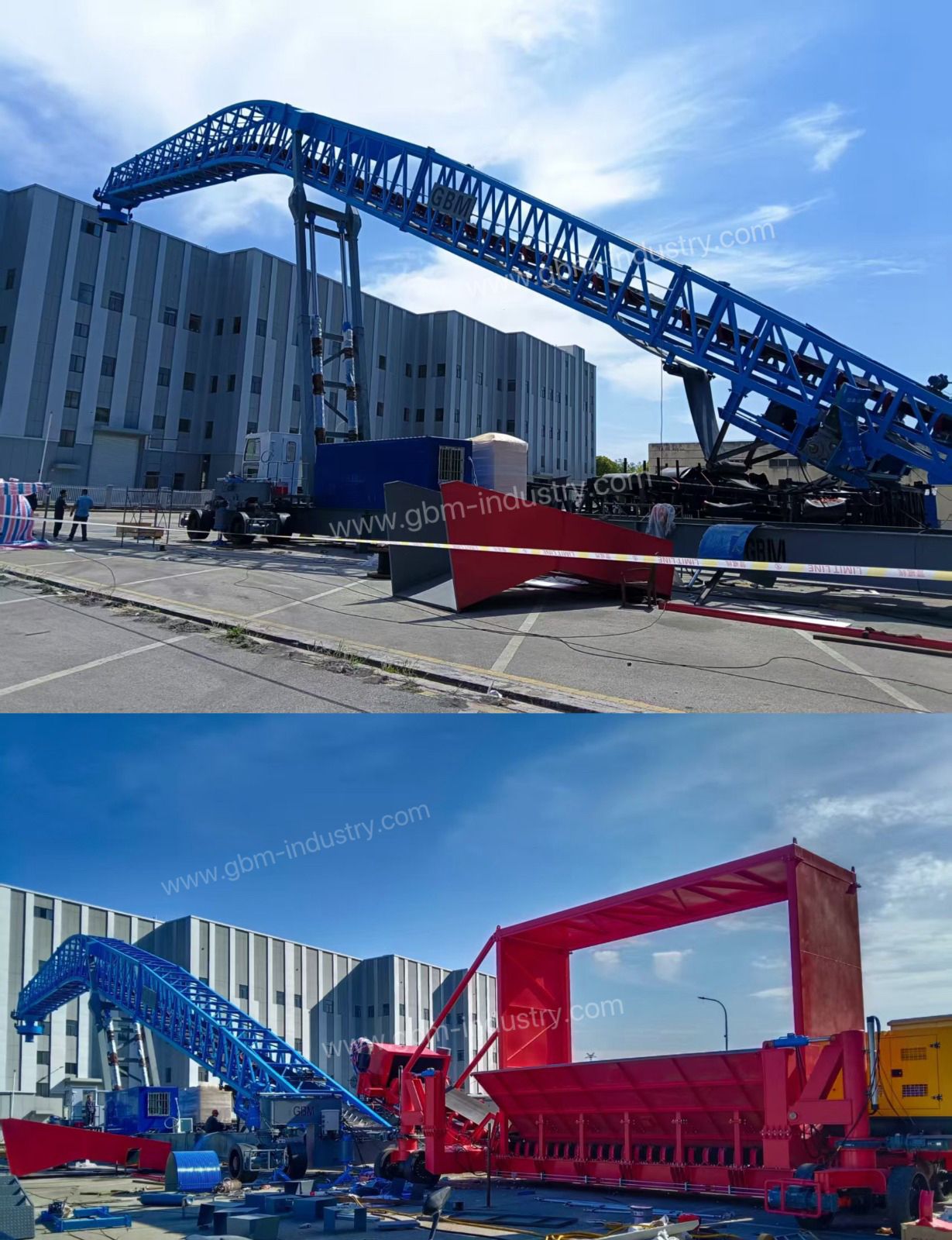

Located in Jiangsu China –We GBM successfully completed factory performance test of 1000T/H fixed boom mobile shiploader,this is specifically design for challenging bulk materials like cement, iron ore, and pelletized minerals. This represent our commitment to eliminating onsite commissioning risks through comprehensive pre-delivery testing at our factory.This is our promise to our customer,once you see and satisfied with our machine,you arrange balance payment to us for shippment.

It designed to handle high-density materials exceeding 3.0 t/m³, so this kind of heavy-duty shiploader have below features under the extreme condition:

High strength and high-quality steel, heavy but flexible
Industrial-grade hydraulic systems suitable for 24/7 operation

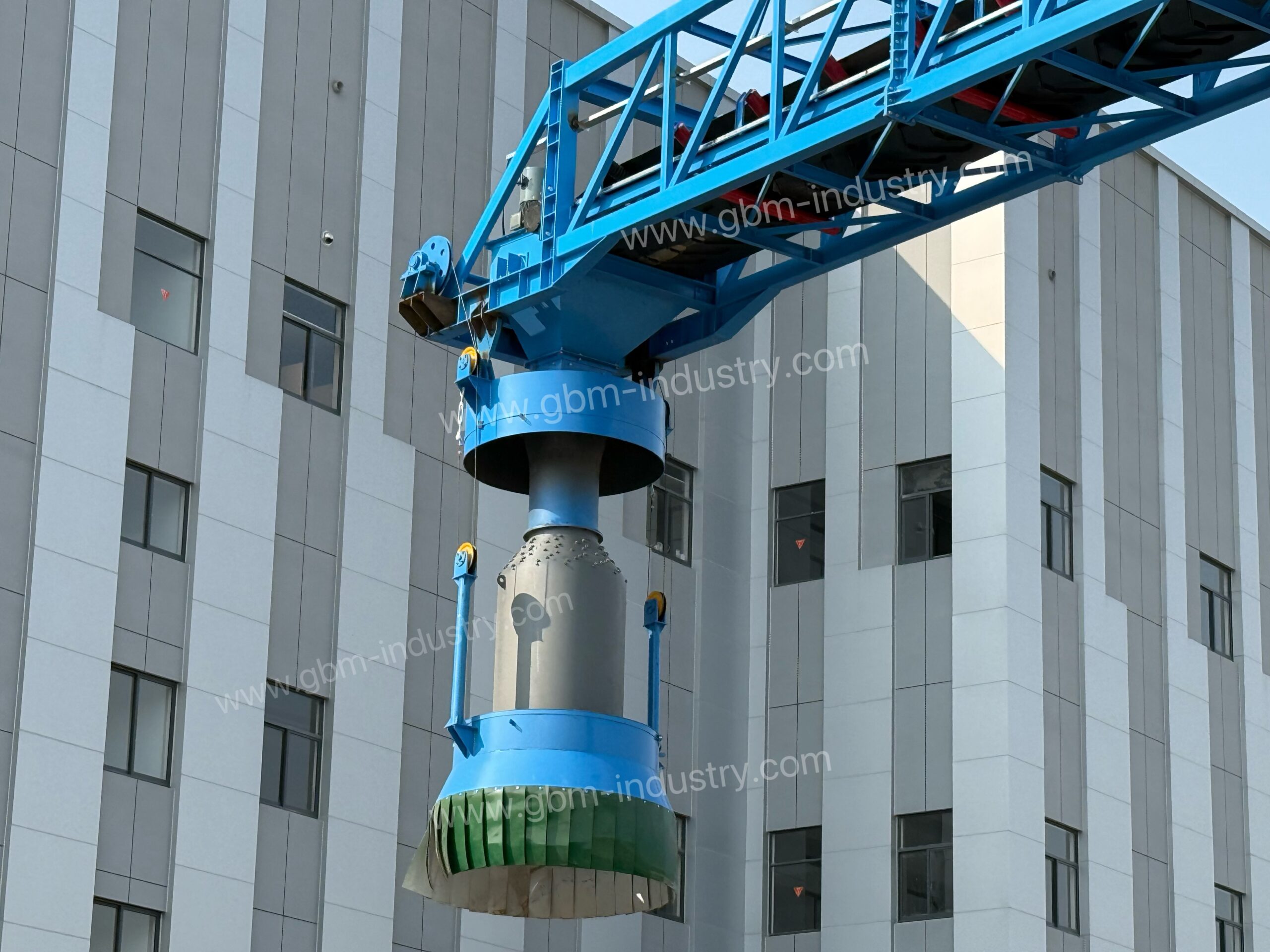

Anti-abrasion telescopic chutes with wear monitoring
IP66-rated electrical cabins for harsh port environments

Why We Do Full Pre-Assembly At Factory?

Unlike another supplier , GBM executed full mechanical, electrical, and functional integration at our testing facility.Although this would mean a longer delivery time and increased costs, this persistence of complete factory debugging could eliminates 95% of on-site technical accidents. Based on the experience and feedback of our installation team, downtime during port assembly is not an good option, and the cost and time required to solve problems on customer site will be longer.

We hope our customers can buy the most suitable equipment with less money. Every time we invited them to the factory, they can intuitively feel what kind of equipment they have purchased.

It bring us the below advantage :

✅ 360° Operational Validation: Simulated real-world loading cycles using actual material

✅ Subsystem Stress Testing: Rigorous assessment of traveling mechanisms, slew bearings, and hydraulic power units

✅ PLC Control Dry-Runs: 72-hour continuous automation system trials before disassembly

The pre-assembly methodology directly addresses key customer challenges and bring more trust,It can solving critical industry pain points like below:

✅ Schedule Installation Time Overruns: Reduces installation time by 30% and save some modifcation cost

✅ Component Incompatibility: Early detection of interface issues

✅ Safety Risks: Pre-verified safety interlocks and emergency stops

Ready to the shippment,there also lots of work to prepare to make sure everything clear and safe.

✅According to customer needs, modularization can be divided and installed using installation and assembly.
✅Customize our production according to the type of bulk carrier or container ship shippment.
✅We will package each component safely to ensure the safety of sea transportation

Market Applications & Availability

The 200T-2000T/H shiploader is now available for global orders, with custom configurations for specific material characteristics.

1. Port & Terminal Operations

Flexibility Challenge: Traditional fixed shiploaders require costly infrastructure (piling, concrete foundations) and struggle with tidal fluctuations, limited space, and multi-berth operations.
GBM Solution: Mobile ship loader units with hydraulic legs adapt to uneven ground and water levels. For example, Zhongxiang Port’s mobile loader boosted efficiency to 1,500 T/H, cutting ship turnaround time by 40%.

2. Cement Transfer Stations

Dust & Contamination Risk: Open-air cement handling causes environmental fines and product loss. Fixed conveyors limit plant-to-vessel flexibility.
GBM Innovation: Fully enclosed belts + 23-meter telescopic chutes with automated dust suppression and cover.It is more eco-friendly for the enviroment and goverment control.

3. Iron Ore Pellet Loading

Abrasion & Downtime: Pellets’ high density (3.0+ t/m³) accelerates equipment wear. Manual loading causes pellet breakage and have loss.
Engineered Durability: GBM loaders use abrasion-resistant steel chutes etc,pre-assembly testing with actual pellets ensures 24/7 reliability ,it is critical for mines exporting 100,000+DWT vessels.
