The Key of Container Handling
Every time a container is lifted off a ship, a truck, or a stack in the yard, a tiny piece of steel bears the entire load. That piece is the twistlock. It is the actual connection point between the spreader and the container corner casting. If a twistlock fails, the container drops. No warning, no second chance.

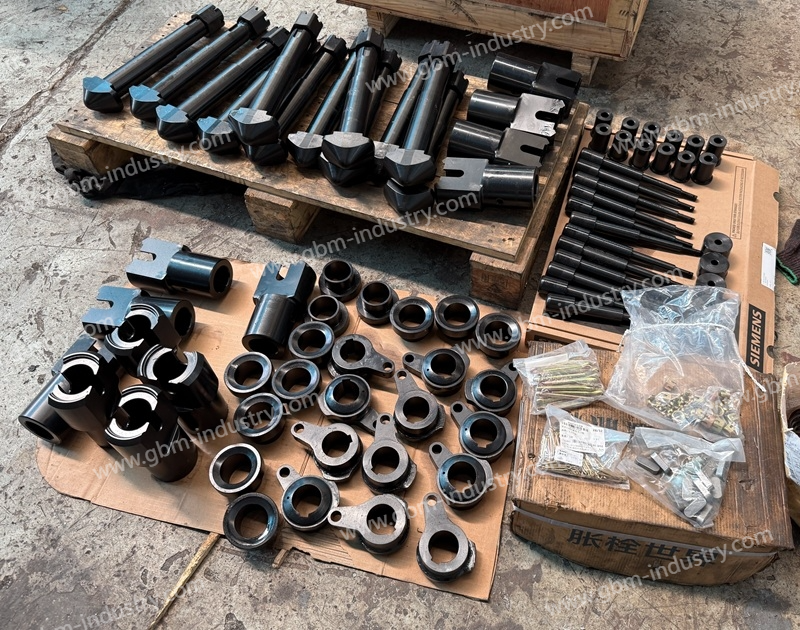

That is why ports, terminals, and crane operators around the world are extremely picky about twistlocks. They know that a cheap or poorly made twistlock puts lives at risk and shuts down operations. GBM understands this responsibility. We have just completed a production run of custom twistlocks for a customer in Vietnam, and the order has been shipped after thorough quality checks. These are not off‑the‑shelf parts. They were designed to match the customer’s specific spreader models and operating conditions. For us, every twistlock is a promise: it will lock securely, release smoothly, and survive thousands of cycles.
What a Twistlock Does?
For those new to container handling, let us explain what a twistlock is and why its job is so critical.
A twistlock is a rotating steel fastener mounted on the four corners of a container spreader. When the spreader is lowered onto a container, each twistlock enters a hole in the container’s corner casting. The operator then signals a 90‑degree rotation. In the locked position, the twistlock’s head widens inside the casting, creating a solid mechanical connection. The crane can now lift the container safely. To release, the operator rotates the twistlock back, and the head aligns with the hole, allowing the spreader to pull away.
That rotation—lock and unlock—happens hundreds of times per shift, thousands of times per week. The twistlock must perform perfectly every single time. Any sticking, any wear that changes the geometry, any hidden crack, and the operation stops. Worse, a failure during a lift can cause a dropped container. GBM’s twistlocks are designed to eliminate that risk. For our Vietnamese customer, these new twistlocks will fit their spreaders precisely and deliver the reliable performance their busy terminal demands.
42CrMo Steel for Real‑World Lifting
Not all steel is the same. A twistlock made from ordinary structural steel would deform under repeated heavy loads. The constant twisting,冲击, and fatigue would cause it to stretch or crack. GBM chooses 42CrMo for all our twistlocks.
Why 42CrMo? This is a chromium‑molybdenum alloy steel known for its excellent combination of strength, toughness, and fatigue resistance. It is commonly used in high‑stress components like crane shafts, gears, and aircraft landing gear. For a twistlock, 42CrMo provides the design strength needed to handle the rated lifting capacity with a generous safety margin. Even after thousands of lock/unlock cycles, the material does not lose its integrity.
The Vietnamese customer’s terminal handles heavy containers, often fully loaded. Their spreaders work hard. By specifying 42CrMo, we gave them twistlocks that will not stretch out of tolerance, will not develop micro‑cracks, and will keep their precise shape for years. That means less frequent replacements, lower spare parts costs, and fewer unplanned maintenance stops.
Heat Treatment, Wire Cutting, and Blackening
A good steel bar is only the beginning. The real value comes from how we shape it and treat it. GBM follows a complete, controlled manufacturing process for every twistlock.
Heat treatment for the right hardness

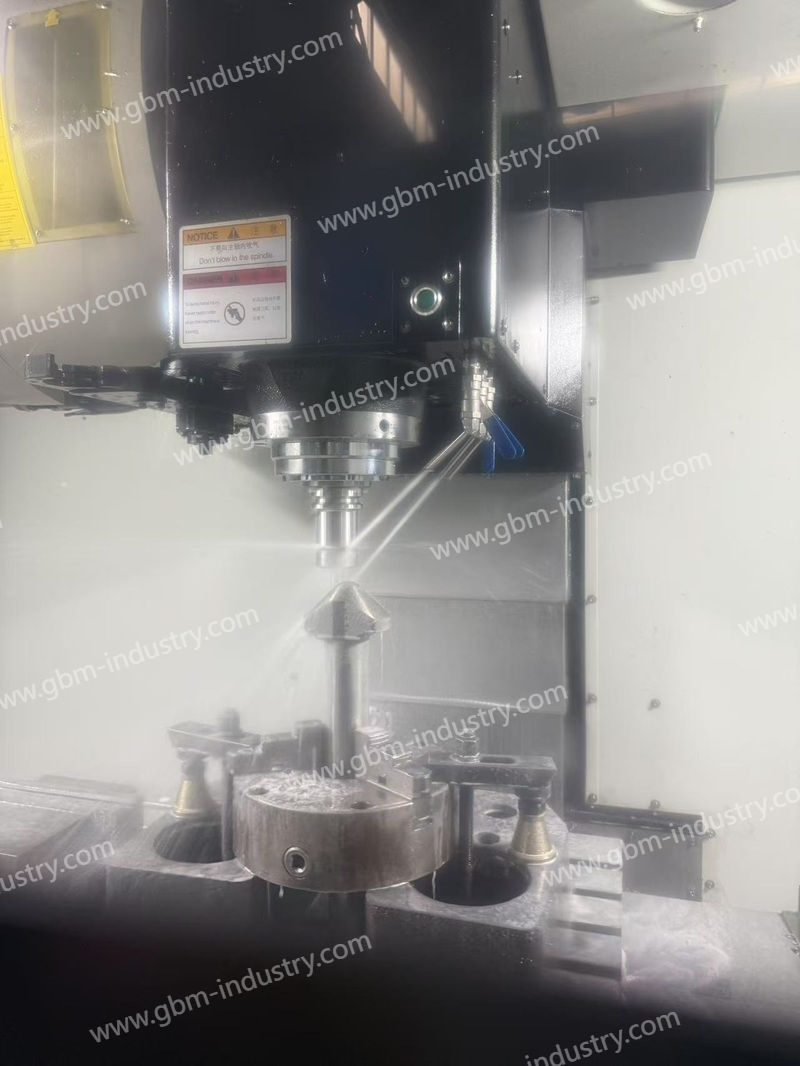

After rough machining, each twistlock goes through heat treatment. This process adjusts the internal structure of the 42CrMo steel to achieve the optimal balance between hardness and toughness. Too soft, and the twistlock will wear quickly. Too hard, and it becomes brittle, risking sudden fracture. Our heat treatment parameters have been refined over years of production, resulting in a twistlock that resists wear while absorbing the shocks of daily crane work.
Wire cutting for exact geometry

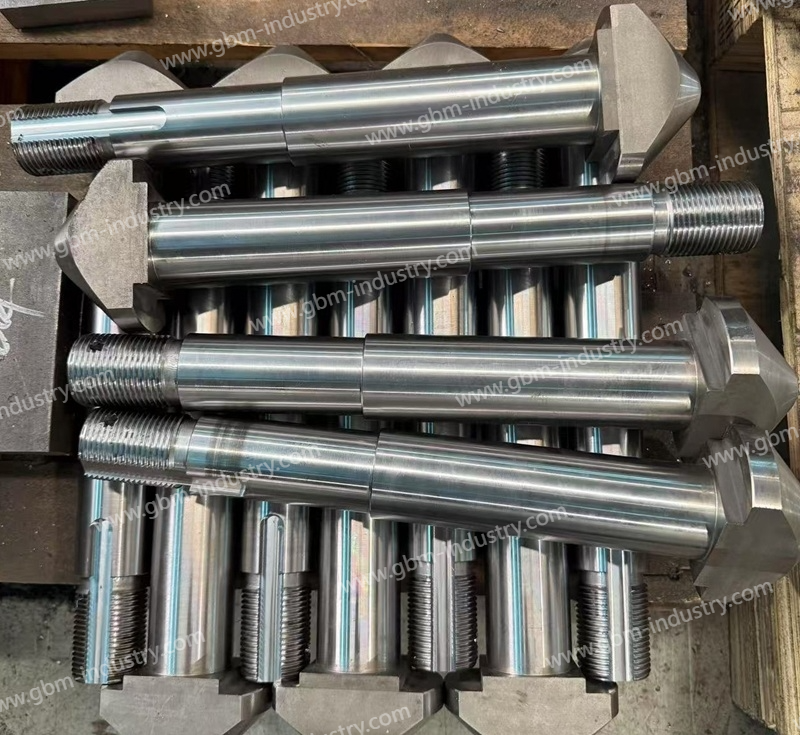

The critical dimensions of a twistlock—the head profile, the shaft diameter, the locking cam surfaces—are finished using wire electrical discharge machining (wire EDM). This method cuts with extreme precision, holding tolerances that conventional milling cannot match. The result is a twistlock that fits perfectly into the corner casting and rotates without binding. For the Vietnamese customer’s spreader, that means no jamming, no misalignment, and a smooth lock/unlock action every time.
Blackening for corrosion resistance
Container terminals are often near salt water. Humidity and salt spray rust ordinary steel quickly. Rust changes the twistlock’s dimensions and makes rotation stiff. GBM applies a black oxide (blackening) finish to each twistlock. This chemical conversion coating provides a layer of corrosion protection without changing the part’s critical dimensions. It also gives the twistlock a professional, uniform appearance. For the customer, blackening means the twistlocks will still look good and work well after months of exposure to marine air.
Quality Twistlocks for Efficient Container Handling
The shipment to Vietnam is not a one‑off. GBM produces twistlocks regularly for customers around the world, either as original equipment on our spreaders or as replacement parts for other brands. We treat every twistlock as a safety‑critical component because that is exactly what it is.
Our manufacturing process is backed by in‑house testing. Each batch is sampled for hardness, dimensional accuracy, and functional fit. We also maintain traceability on the 42CrMo material, so any twistlock can be traced back to its original steel lot. That level of care is what port operators expect from a professional supplier.
If your terminal uses spreaders from Bromma, ZPMC, Stinis, or any other brand, GBM can supply twistlocks that match your requirements. We offer standard sizes as well as custom designs. Contact us with your twistlock specifications, and we will provide a sample for approval. Do not trust your container lifts to unknown parts. Choose GBM—where every twistlock is built to lock tight and last long.
